LED-UMRÜSTSETS LINEAR

LED-Umrüstsets linear – fünf Gründe, die überzeugen.

  1. Universell einsetzbar
  2. 3000 K / 4000 K
  3. Farbwiedergabe: CRI > 90
  4. Stufenlose Lichtstromregulierung
  5. Entwickelt und hergestellt in der Schweiz

Maximale Flexibilität

Die universell einsetzbaren linearen LED-Umrüstsets sind die richtige Wahl, um alte Leuchtstofflampen auf einfache Weise kostensparend auszutauschen. Sie erhalten eine energieeffiziente und langlebige Beleuchtungslösung, die alle Sicherheitsaspekte berücksichtigt. Zum Flyer.

ÜBERSICHT

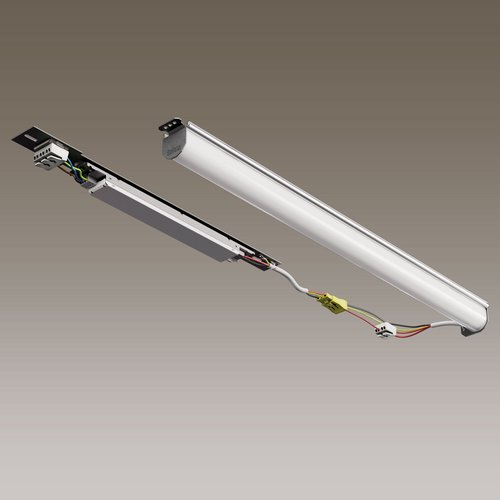

246080-V1A9V

Linear LED conversion set

8.0-15.4 W LED, 980-1890 Lumen, 123 Lumen/Watt, 3000/4000 Kelvin. L=574mm, CRI>90, IP20. Energy efficiency class of the light source: D. Mounting distance 587-637 mm. With magnets as mounting aid, converter and luminaire unit can be separated by plug. Light colour selectable 3000/4000 K, light intensity adjustable in a defined range with Tridonic app 4service NFC. With electronic ballast.

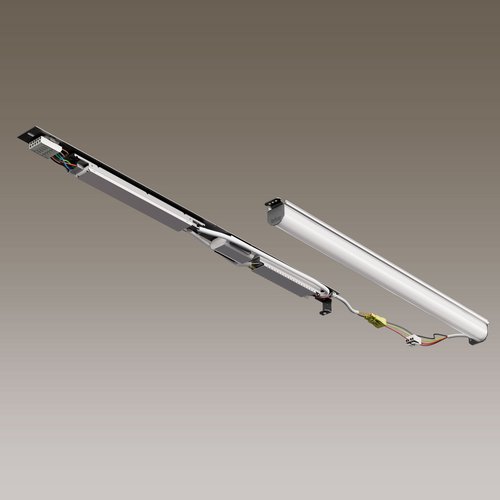

246080-V1ADN9V

Linear LED conversion set

6.2-15.4 W LED, 750-1890 Lumen, 123 Lumen/Watt, 3000/4000 Kelvin. L=574mm, CRI>90, IP20. Energy efficiency class of the light source: D. Mounting distance 587-637 mm. With magnets as mounting aid, converter and luminaire unit can be separated by plug. Light colour selectable 3000/4000 K, light intensity adjustable in a defined range with Tridonic app 4service NFC. Status LED and converter plate can be positioned flexibly. With electronic ballast and integrated emergency lighting. With DALI control.

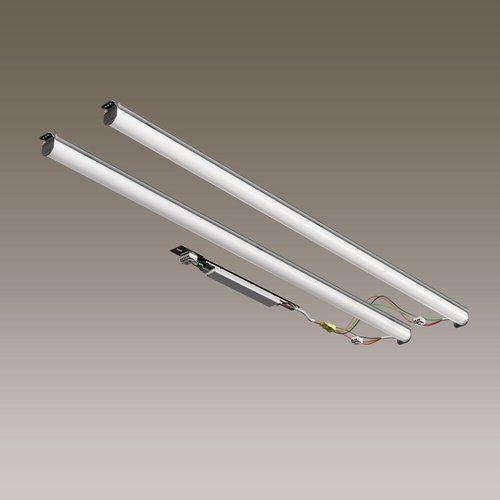

246082-2-V1A9V

Linear LED conversion set, 2 tubes

26.9-47.7 W LED, 3440-6100 Lumen, 128 Lumen/Watt, 3000/4000 Kelvin. L=1134mm, CRI>90, IP20. Energy efficiency class of the light source: D. 2 tubes. Mounting distance 1147-1197 mm. With magnets as mounting aid, converter and luminaire unit can be separated by plug. Light colour selectable 3000/4000 K, light intensity adjustable in a defined range with Tridonic app 4service NFC. With electronic ballast.

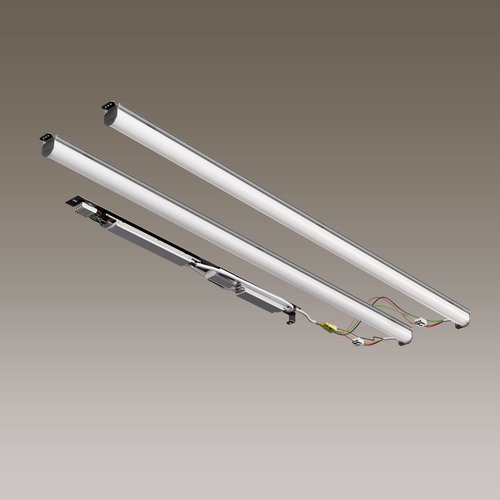

246082-2-V1ADN9V

Linear LED conversion set, 2 tubes

26.9-47.7 W LED, 3440-6100 Lumen, 128 Lumen/Watt, 3000/4000 Kelvin. L=1134mm, CRI>90, IP20. Energy efficiency class of the light source: D. 2 tubes. Mounting distance 1147-1197 mm. With magnets as mounting aid, converter and luminaire unit can be separated by plug. Light colour selectable 3000/4000 K, light intensity adjustable in a defined range with Tridonic app 4service NFC. Status LED and converter plate can be positioned flexibly. With electronic ballast and integrated emergency lighting. With DALI control.

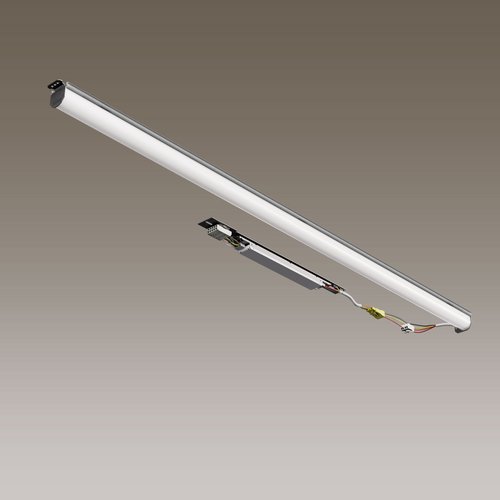

246082-V1AD9V

Linear LED conversion set

15.2-30.5 W LED, 1900-3800 Lumen, 125 Lumen/Watt, 3000/4000 Kelvin. L=1134mm, CRI>90, IP20. Energy efficiency class of the light source: D. Mounting distance 1147-1197 mm. With magnets as mounting aid, converter and luminaire unit can be separated by plug. Light colour selectable 3000/4000 K, light intensity adjustable in a defined range with Tridonic app 4service NFC. With electronic ballast. With DALI control.

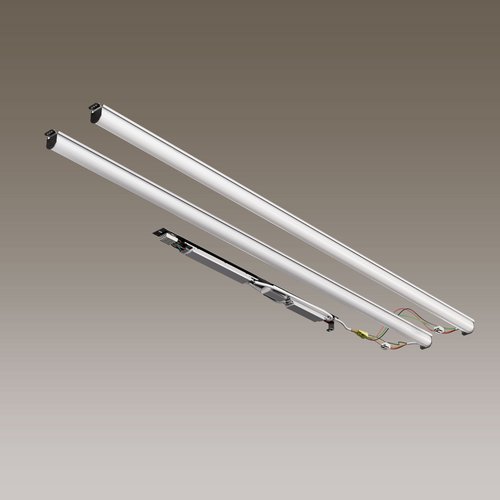

246083-2-V1ADN9V

Linear LED conversion set, 2 tubes

33.2-59 W LED, 4250-7550 Lumen, 128 Lumen/Watt, 3000/4000 Kelvin. L=1414mm, CRI>90, IP20. Energy efficiency class of the light source: D. 2 tubes. Mounting distance 1427-1477 mm. With magnets as mounting aid, converter and luminaire unit can be separated by plug. Light colour selectable 3000/4000 K, light intensity adjustable in a defined range with Tridonic app 4service NFC. Status LED and converter plate can be positioned flexibly. With electronic ballast and integrated emergency lighting. With DALI control.

TECHNISCHE EIGENSCHAFTEN

  • Farbtemperatur: 3000 K, 4000 K, umsteckbar
  • Stufenlose Lichtstromregulierung via NFC
  • Ausführungen: 1-flammig und 2-flammig
  • Längen: 574 mm, 834 mm, 1134 mm, 1414 mm
  • ON/OFF, DALI, NOT, DALI + NOT

MONTAGE LEICHT GEMACHT

  • Magnetische Montagehilfe
  • Verstellbare Montagepunkte
  • Nützliches Zubehör: Befestigungsbügel-Set, Verlängerung (500 mm) für LED-Ladeanzeige, selbstklebende Metallscheibe für nichtmagnetische Oberflächen

Nachhaltiger Erfolg durch Upcycling und Umrüsten

Ob universell einsetzbare Umrüstsets oder leuchtenspezifische Umbausets, Tulux bietet zahlreiche nachhaltige Lösungen, um bestehende Anlagen zu optimieren und auf den neuesten Stand der Technik zu bringen. Entdecken Sie die vielfältigen Möglichkeiten einer intelligenten Beleuchtungssanierung.
