SAFE

[Translate to English:] SAFE - fünf Gründe, die überzeugen

SAFE - five convincing reasons.



  1. Reliable power supply
  2. Easy installation
  3. Reliability
  4. LED technology
  5. Simple design

Overview

1499R-1M6

Escape route luminaire SAFE

1.4W LED, 148 Lumen, 106 Lumen/Watt, 6500 Kelvin. L=146mm, W=146mm, H=39mm, CRI>70, UGR<28, IP40. Housing made of white aluminium. Without integrated emergency power supply.

1499R-1MN6

Escape route luminaire SAFE

4W LED, 197 Lumen, 6500 Kelvin. L=146mm, W=146mm, H=39mm, CRI>70, UGR<28, IP40. Housing made of white aluminium. With integrated emergency power supply. Duration of illumination 1h.

16039R-1M6

Escape route luminaire SAFE

1.4W LED, 148 Lumen, 106 Lumen/Watt, 6500 Kelvin. D=125mm, Ø=108mm, CRI>70, UGR<28, ceiling-side IP20 and room-side IP40. White. With universal mounting brackets. Without integrated emergency power supply.

16039R-1MN6

Escape route luminaire SAFE

4W LED, 197 Lumen, 6500 Kelvin. D=125mm, Ø=108mm, CRI>70, UGR<28, ceiling-side IP20 and room-side IP40. White. With universal mounting brackets. With integrated emergency power supply. Duration of illumination 1h.

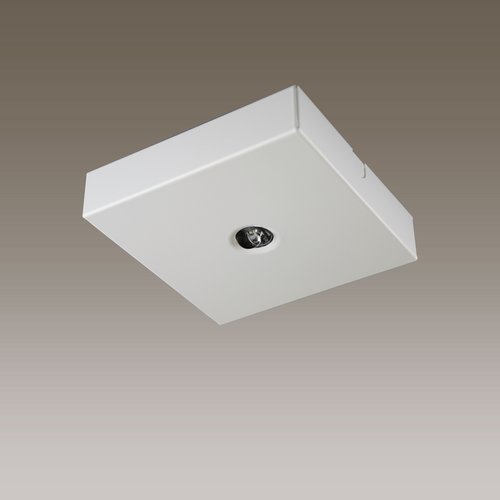

[Translate to English:] Aufbaunotleuchte SAFE

Surface-mounted ...

The self-sufficient safety lighting SAFE ensures that in the case of a general power failure, lighting is provided immediately, automatically and for a specified period of time. This delivers the brightness and uniformity of light required by the standard EN 1838 for a defined area.

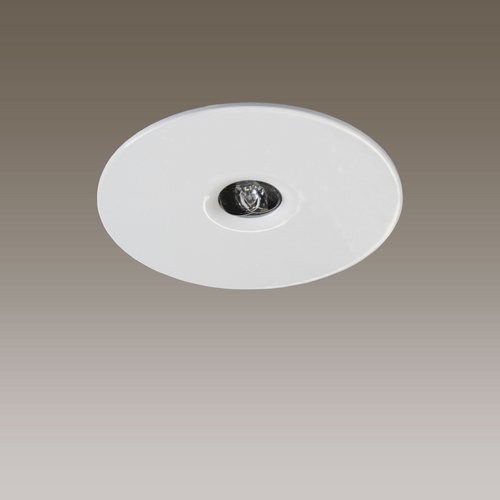

[Translate to English:] Einbaunotleuchte SAFE

... or recessed

Its energy-saving properties and long lifespan, and the resulting reduction in maintenance requirements, are clear arguments in favour of the safety lighting SAFE. With their modern, simple design, our escape route luminaires SAFE and anti-panic luminaires SAFE can be discreetly integrated into the room. Developed and produced according to our SWISS LIGHT CREATIONS philosophy.



[Translate to English:] Lichtverteilungskurven Fluchtwegleuchte SAFE

Escape route luminaire SAFE

Our escape route luminaire SAFE with strong light distribution in the direction of the escape route guarantees adequate visual conditions and orientation on escape routes. This enables buildings to be evacuated safely.



[Translate to English:] Lichtverteilungskurven Antipanikleuchte SAFE

Anti-panic luminaire SAFE

Our anti-panic luminaire SAFE with rotationally symmetrical light distribution acts to reduce the likelihood of panic breaking out or accidents occurring, as it enables the people affected to reach an escape route safely.



Applications

Depending on the occupancy and use of the building, fire regulations require safety lighting for safety purposes. With our two SAFE products, the ‘escape route luminaire’ and the ‘anti-panic luminaire’, the defined safety objectives of the emergency lighting concept are fulfilled.



Here is a selection of possible areas of application:

  • Offices
  • Schools
  • Hotels
  • Restaurants
  • Industry
  • Hospitals
  • Clinics
  • Homes
  • Sports facilities
  • Multi-purpose halls
  • Car parks
