ZEN
ZEN
Put your architecture in the spotlight.
«Paring things back to the essentials and concentrating on quality: ZEN embodies Swiss Light Creations to perfection. A beautifully simple, clean-lined design language with superb light quality and craftsmanship – that’s what ZEN says to me.»
Livio Causio, Development / Product Design
OVERVIEW
100ZR46-M1BD94
LED light band ZEN
28.4W LED, 3262 Lumen, 115 Lumen/Watt, 4000 Kelvin. L=1000mm, W=65mm, H=82mm, CRI>90, UGR<25, IP20. Energy efficiency class of the light source: C. For ceiling, wall or pendant mounting. Natural anodized aluminium profile. White lacquered insert. Flush-mounted cover made of satin-finished acrylic glass. Medium light output. Direct emission. With electronic ballast. With DALI control. Removal tool for cover included. End plates excluded. Sensor technology optionally available.

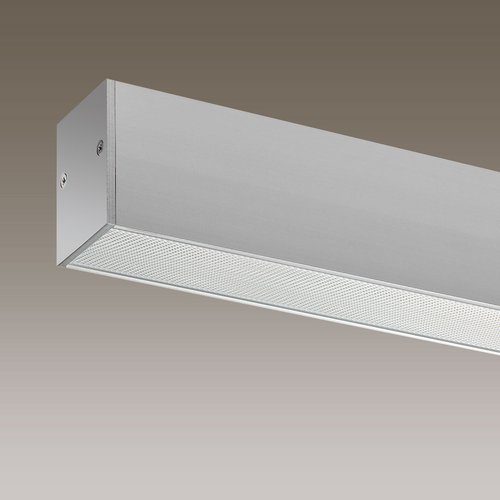

100ZR44-M1BD94
LED light band ZEN
28.4W LED, 2926 Lumen, 104 Lumen/Watt, 4000 Kelvin. L=1000mm, W=65mm, H=82mm, CRI>90, UGR<22, IP20. Energy efficiency class of the light source: C. For ceiling or pendant mounting. Natural anodized aluminium profile. White lacquered insert. Flush-mounted cover made of prismatic acrylic glass. Medium light output. Direct emission. With electronic ballast. With DALI control. Removal tool for cover included. End plates excluded. Sensor technology optionally available.

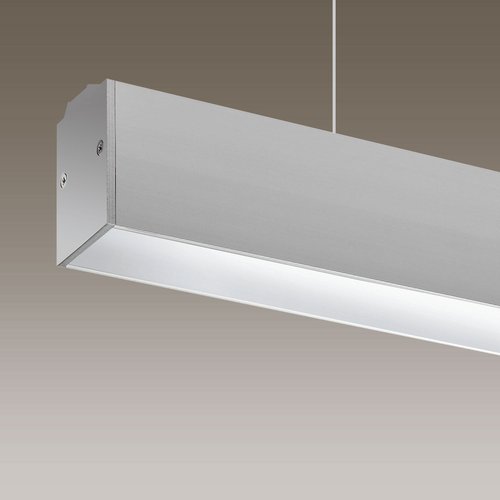

100ZRJ46-M1BD94
LED light band ZEN
41.7W LED, 4702 Lumen, 113 Lumen/Watt, 4000 Kelvin. L=1000mm, W=65mm, H=82mm, CRI>90/80, UGR<25, IP20. Energy efficiency class of the light source: C. For pendant mounting. Natural anodized aluminium profile. White lacquered insert. Flush-mounted cover made of satin-finished acrylic glass. Medium light output. Direct/indirect emission. With electronic ballast. With DALI control. Removal tool for cover included. End plates and suspension excluded. Sensor technology optionally available.

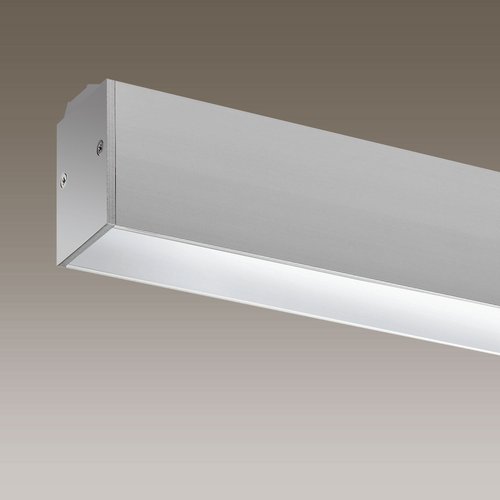

100ZRWJ46-M1BD94
LED light band ZEN
41.7W LED, 4702 Lumen, 113 Lumen/Watt, 4000 Kelvin. L=1000mm, W=65mm, H=82mm, CRI>90/80, UGR<25, IP20. Energy efficiency class of the light source: C. For wall mounting. Natural anodized aluminium profile. White lacquered insert. Flush-mounted cover made of satin-finished acrylic glass. Medium light output. Direct/indirect emission. With electronic ballast. With DALI control. Removal tool for cover included. End plates and wall console excluded. Sensor technology optionally available.

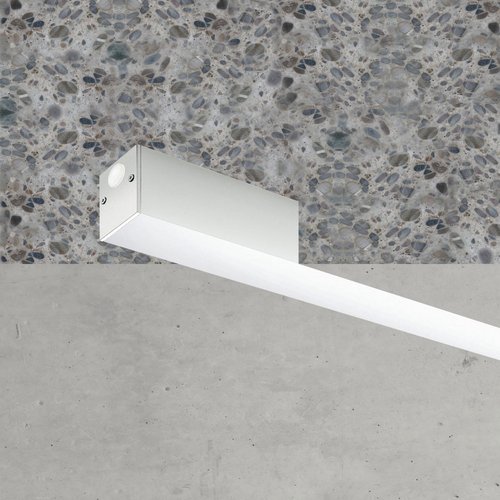

100ZRA46-M1BD94
LED light band ZEN
28.4W LED, 3262 Lumen, 115 Lumen/Watt, 4000 Kelvin. L=1000mm, W=65mm, H=82mm, CRI>90, UGR<25, IP20. Energy efficiency class of the light source: C. For embedding in exposed concrete ceiling. Including clip timber. Natural anodized aluminium profile. White lacquered insert. Flush-mounted cover made of satin-finished acrylic glass. Medium light output. Direct emission. With electronic ballast. With DALI control. Removal tool for cover included. End plates excluded. Sensor technology optionally available.

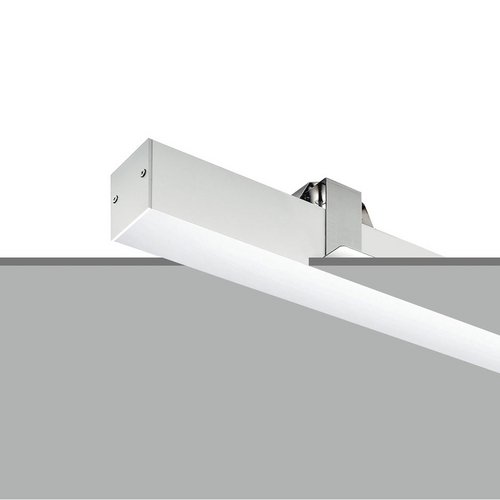

100ZRE46-M1BD94
LED light band ZEN
28.4W LED, 3262 Lumen, 115 Lumen/Watt, 4000 Kelvin. L=1000mm, W=65mm, H=82mm, CRI>90, UGR<25, IP20. Energy efficiency class of the light source: C. For embedding in hollow ceiling. Including mounting clip and anchor pieces. Natural anodized aluminium profile. White lacquered insert. Flush-mounted cover made of satin-finished acrylic glass. Medium light output. Direct emission. With electronic ballast. With DALI control. Removal tool for cover included. End plates excluded. Sensor technology optionally available.

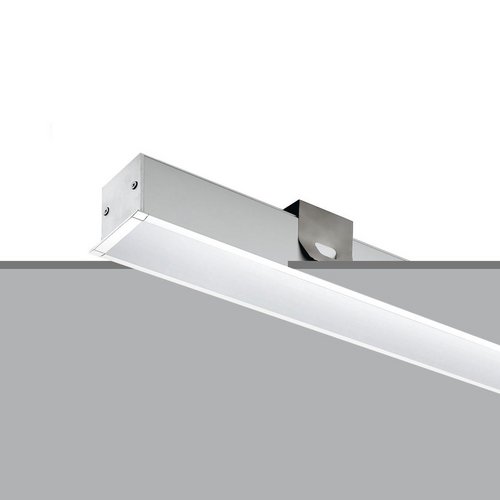

100ZRER46-M1BD94
LED light band ZEN
28.4W LED, 3262 Lumen, 115 Lumen/Watt, 4000 Kelvin. L=1000mm, W=65mm, H=82mm, CRI>90, UGR<25, IP20. Energy efficiency class of the light source: C. For embedding in hollow ceiling. Natural anodized aluminium profile with ceiling trim. White lacquered insert. Flush-mounted cover made of satin-finished acrylic glass. Medium light output. Direct emission. With electronic ballast. With DALI control. Removal tool for cover included. End plates and mounting clips excluded. Sensor technology optionally available.
LUMINAIRE SERIES
Whether as a single luminaire, a pared-back light band or a creative design element: ZEN offers unlimited creative freedom. ZEN is available in satin and prismatic versions as a recessed, surface-mounted, wall and pendant luminaire, and can also be set in concrete. When combined with the more delicate ZEN XS model, it creates a continuous indoor luminaire that emphasises the architecture with its sophisticated anodised aluminium profile.
TECHNICAL SPECIFICATIONS
- Colour temperature: 3000 K and 4000 K
- Dimensions: 65 x 82 mm
- Colour rendering: CRI > 90
- Unified Glare Rating: up to UGR < 16
- Effective luminous flux: up to 4612 lm/m
- System efficiency: up to 120 lm/W
- Shock resistance: IK06 (satin-finished cover) / IK07 (prismatic cover)
- IP class: IP20, optional IP50 in the lamp housing
- ON/OFF, DALI-2 and emergency operation
