SPIN 2
SPIN 2
SPIN 2 – the latest generation of integrated indoor luminaires. Check out the product teaser!
«SPIN is a very classic, timeless luminaire – perfect for achieving harmonious lighting concepts. Its range of sizes and versions mean it can be used virtually anywhere. Our hit luminaire SPIN continues to enjoy high acceptance, and we have the perfect update in SPIN 2. Customers can expect even easier mounting, the latest LED technology and additional variants at a similar price.»
Tatjana Marty, Internal Sales
Overview

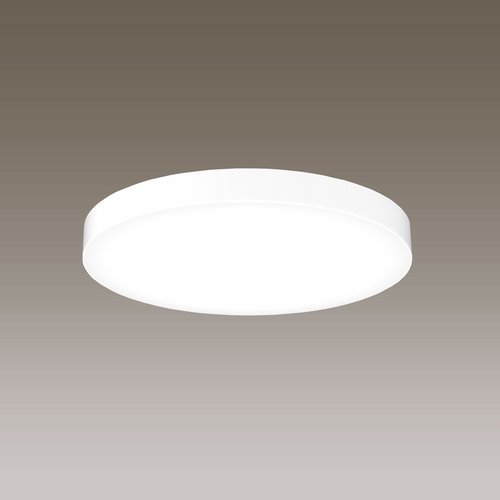

60NL5-M1AD94
Surface-mounted luminaire SPIN 2
59.5W LED, 8050 Lumen, 136 Lumen/Watt, 4000 Kelvin. H=91mm, Ø=600mm, CRI>90, UGR<25, IP40. IP50 in the lamp housing. Energy efficiency class of the light source: D. For ceiling or wall mounting. Opal cover made of acrylic glass. Medium light output. Direct / passive indirect light ratio. RAL 9016 matt white console. With electronic ballast. With DALI control.
60NLS5-M1AD94

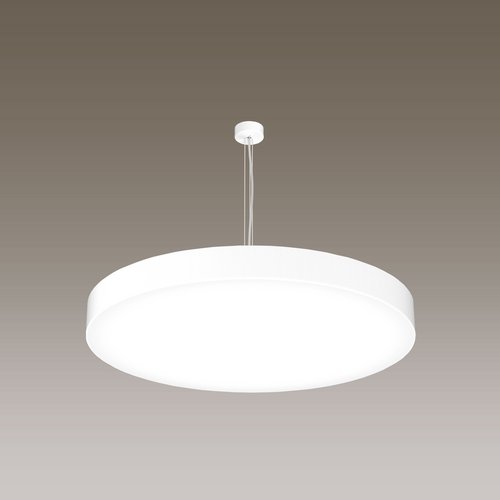

Cable pendant luminaire SPIN 2
69.2W LED, 9085 Lumen, 132 Lumen/Watt, 4000 Kelvin. H=89mm, Ø=600mm, CRI>90, UGR<22, IP40. Energy efficiency class of the light source: D. For ceiling mounting. Opal cover made of acrylic glass. Medium light output. Direct / active indirect light ratio. RAL 9016 matt white console. 3-point steel cable suspension 1 m, adjustable in height. White canopy, transparent cable. With electronic ballast. With DALI control.
60NLR5-M1AD94
Tube pendant luminaire SPIN 2
69.2W LED, 9085 Lumen, 132 Lumen/Watt, 4000 Kelvin. H=89mm, Ø=600mm, CRI>90, UGR<22, IP40. Energy efficiency class of the light source: D. For ceiling mounting. Opal cover made of acrylic glass. Medium light output. Direct / active indirect light ratio. RAL 9016 matt white console. White canopy and tube. Suspension tube 685 mm, with ball joint for self-levelling, can be shortened on site. With electronic ballast. With DALI control.

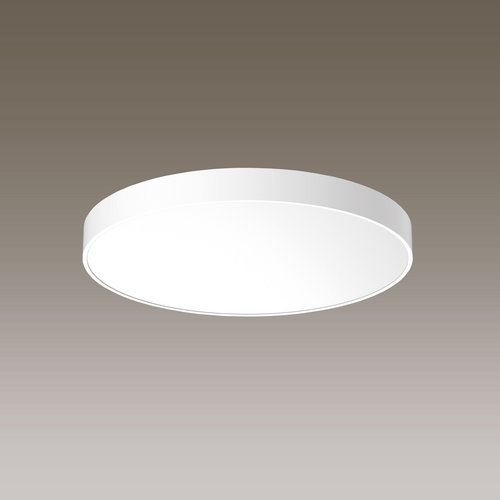

60NLH5-M1AD94
Surface-mounted luminaire SPIN 2
59.1W LED, 7531 Lumen, 128 Lumen/Watt, 4000 Kelvin. H=84mm, Ø=604mm, CRI>90, UGR<25, IP20. IP50 in the lamp housing. Energy efficiency class of the light source: D. For ceiling or wall mounting. Opal cover made of acrylic glass. Medium light output. Direct light ratio. RAL 9016 matt white aluminium frame and console. With electronic ballast. With DALI control.
60NLHJS5-M1AD94
Cable pendant luminaire SPIN 2
68.5W LED, 9085 Lumen, 133 Lumen/Watt, 4000 Kelvin. H=82mm, Ø=604mm, CRI>90, UGR<22, IP20. Energy efficiency class of the light source: D. For ceiling mounting. Opal cover made of acrylic glass. Medium light output. Direct / active indirect light ratio. RAL 9016 matt white aluminium frame and console. 3-point steel cable suspension 1 m, adjustable in height. White canopy, transparent cable. With electronic ballast. With DALI control.
60NLHJR5-M1AD94

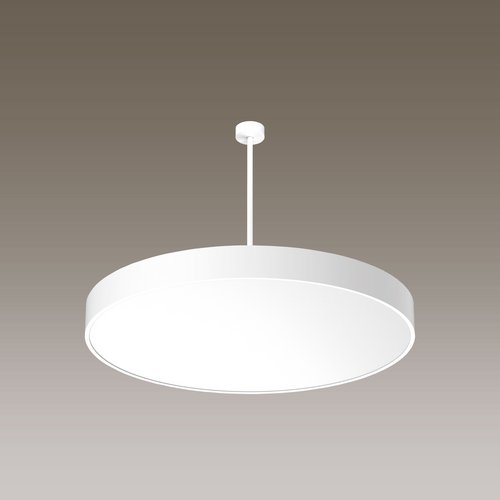

Tube pendant luminaire SPIN 2
68.5W LED, 9085 Lumen, 133 Lumen/Watt, 4000 Kelvin. H=82mm, Ø=604mm, CRI>90, UGR<22, IP20. Energy efficiency class of the light source: D. For ceiling mounting. Opal cover made of acrylic glass. Medium light output. Direct / active indirect light ratio. RAL 9016 matt white aluminium frame and console. White canopy and tube. Suspension tube 685 mm, with ball joint for self-levelling, can be shortened on site. With electronic ballast. With DALI control.

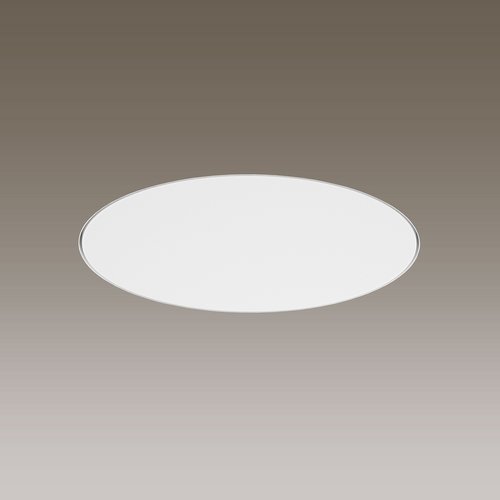

60NLU5-T1AD94
Recessed luminaire SPIN 2
29.7W LED, 4180 Lumen, 141 Lumen/Watt, 4000 Kelvin. Ø=600mm, CRI>90, UGR<25, IP20. IP50 in the lamp housing. Energy efficiency class of the light source: D. For mounting in hollow ceiling (with installation housing 60NLE or 60NLER) or for embedding in concrete (with cast-?in housing 60NLA). Opal cover made of acrylic glass, ceiling-?even cover. Low light output. Direct light ratio. RAL 9016 matt white console. With electronic ballast. With DALI control.

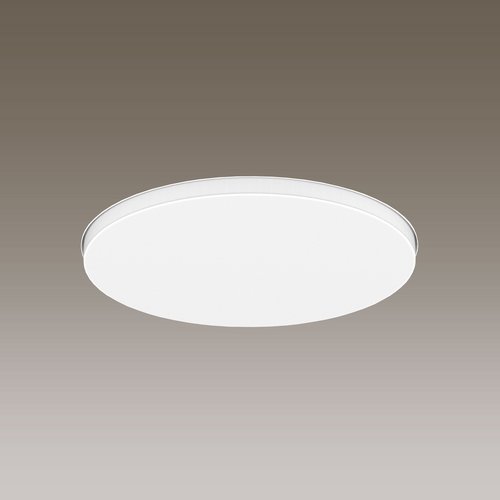

60NLUV5-T1AD94
Semi-recessed luminaire SPIN 2
29.7W LED, 4072 Lumen, 138 Lumen/Watt, 4000 Kelvin. Ø=600mm, CRI>90, UGR<22, IP20. IP50 in the lamp housing. Energy efficiency class of the light source: D. For mounting in hollow ceiling (with installation housing 60NLE or 60NLER) or for embedding in concrete (with cast-?in housing 60NLA). Cover 30 mm protruding. Opal cover made of acrylic glass. Low light output. Direct light ratio, slight ceiling brightening. RAL 9016 matt white console. With electronic ballast. With DALI control.

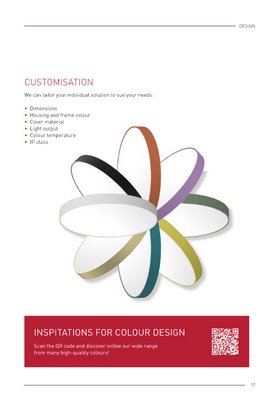

E-MAGAZINE
Informative illustrations, concrete facts and figures and incisive articles full of light bulb moments – our product magazine for architects, planners and fitters is packed with details of the SPIN 2 luminaire series and its applications, along with interesting information about light in general.
LUMINAIRE SERIES
The range of SPIN 2 luminaires includes a wide selection of variants for ceiling and wall mounting as well as for pendant mounting with cable or tube suspension – as a classic design or with aluminium frame. Combined with the play of direct and active/passive indirect light to achieve different lighting moods, SPIN 2 is an integrated indoor luminaire.
TECHNICAL SPECIFICATIONS
- Colour temperature: 3000 K and 4000 K
- Dimensions: Ø 400 / 600 / 900 mm; cover or frame height 60 mm (semi-recessed 30 mm)
- Colour rendering: CRI > 90
- Unified Glare Rating: from UGR < 16 to UGR < 25
- Effective luminous flux: 1427 up to 15 190 lm
- System efficiency: up to 141 lm/W
- Shock resistance: IK06 (opal cover) / IK05 (prismatic cover)
- IP class: ceiling/wall-mounted/recessed luminaire IP20 / IP50 in the lamp housing,
pendant luminaire IP20 / IP40 in the lamp housing - ON/OFF, DALI-2 and emergency operation

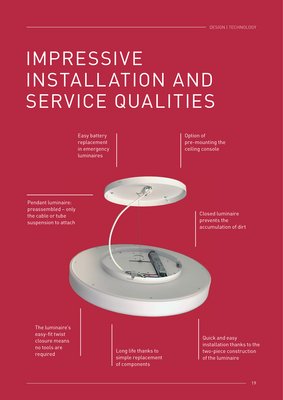

Installation
- The luminaire’s easy-fit twist closure means no tools are required
- Long life thanks to simple replacement of components
- Quick and easy installation thanks to the two-piece construction of the luminaire
- Closed luminaire prevents the accumulation of dirt
- Option of pre-mounting the ceiling console
- Easy battery replacement in emergency luminaires
- Pendant luminaire: preassembled – only the cable or tube suspension to attach
APPLICATIONS
- Work stations
- Lounges
- Seminar rooms
- Access areas
- Reception areas
- Treatment rooms
- Visitor/staff restaurants
- Reception
- Offices
- Living areas
- Stairwells
- Corridors
- Kitchens
- Classrooms
- Kindergartens
- Community spaces
