PLANK

PLANK

A product that wins people over. Check out the product teaser!



"When technical expertise, creativity and experience come together in a new development, the result is perfect. PLANK, the new commercial and industrial luminaire, makes protracted installation times a thing of the past. The PLANK click adapter is easy to mount using a nail gun. It takes just a few steps to finish installing the luminaire by hand, as it can be easily clicked into place with no need for tools. The ease of service is another advantage: the luminaire can be replaced without disabling the electric power. PLANK is a luminaire that is suitable for everyday use in virtually any area of application. For me, PLANK is the modern realisation of a commercial and  industrial luminaire. It’s robust, reliable and functional – a strong luminaire  for tough environments."

Beatrice Beyeler, Export
[Translate to English:] Fünf Gründe für die Gewerbe- und Industrieleuchte PLANK

PLANK – five convincing reasons.



  1. Ready to light
  2. IP protection with chrome-steel-plated sealing
  3. Robust, simple and functional
  4. Exceptionally easy installation and servicing
  5. Wide range of applications

Overview

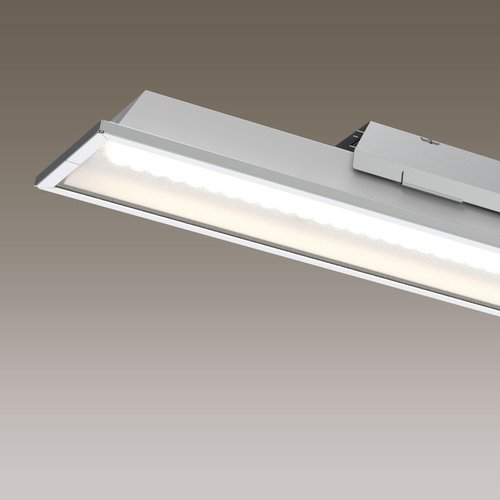

121NH51-19QD4

Commercial and industrial luminaire PLANK

22.2W LED, 3116 Lumen, 141 Lumen/Watt, 4000 Kelvin. L=1214mm, CRI>80, UGR<25, IP66. Ceiling or wall mounted luminaire. Suitable for ambient temperatures of -20°C up to +45°C. Luminaire housing made of…

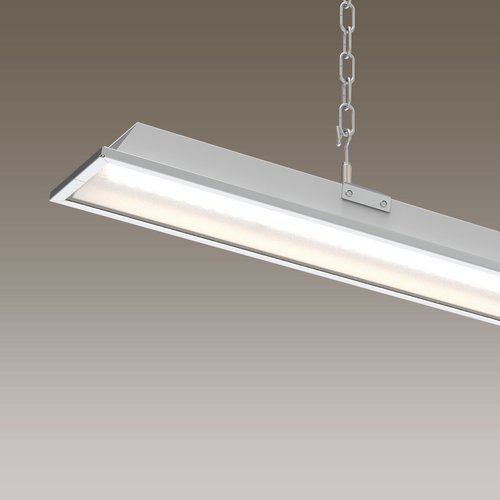

121NHP51-31QD4

Commercial and industrial luminaire PLANK

34.7W LED, 4986 Lumen, 144 Lumen/Watt, 4000 Kelvin. L=1214mm, CRI>80, UGR<25, IP66. Pendant luminaire. Suitable for ambient temperatures of -10°C up to +45°C. Luminaire housing made of industrial grey…

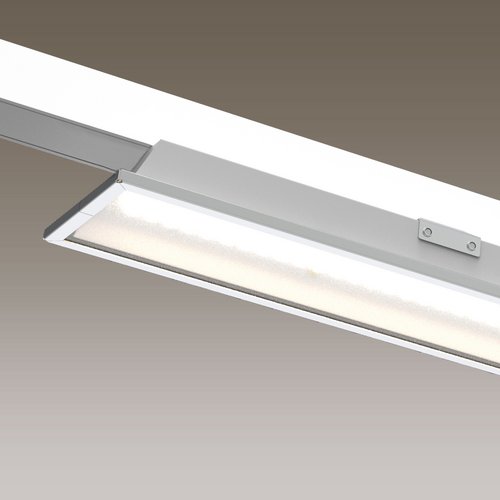

121BHB51-31QN4

Commercial and industrial luminaire PLANK

34.7W LED, 4986 Lumen, 144 Lumen/Watt, 4000 Kelvin. L=1214mm, CRI>80, UGR<25, IP20. System luminaire. Suitable for ambient temperatures of +5°C up to +40°C. Luminaire housing made of industrial grey…

121BHK51-31QN4

Commercial and industrial luminaire PLANK

34.7W LED, 4986 Lumen, 144 Lumen/Watt, 4000 Kelvin. L=1214mm, CRI>80, UGR<25, IP66. System luminaire. Suitable for ambient temperatures of +5°C up to +40°C. Luminaire housing made of industrial grey…

[Translate to English:] So wird die PLANK montiert

EASY INSTALLATION AND SERVICE

  • Short installation time
  • Click adapter can be mounted using a nail gun
  • Luminaire is easy to click into place with no need for tools
  • Luminaire can be replaced without disabling the electric power
  • Accessible power connection for easy installation

VERSATILE MOUNTING OPTIONS

  • Ceiling- and wall-mounted luminaire
  • Pendant luminaire
  • Mounting on IP20 TURBO lighting band system
  • Mounting on IP66 TURBO lighting band system

OPTIONAL ACCESSORIES

For flexible fixation thanks to mounting with tilt angle

  • Mounting bracket 0−90°, swivelling

For increased protection during heavy use

  • Set of front sides



Maintenance concept of the PLANK commercial and industrial luminaire

MAINTENANCE CONCEPT

  • Sustainable maintenance concept
  • Service support from Tulux
  • Maintenance according to customer wishes
[Translate to English:] Stirnansicht der Gewerbe- und Industrieleuchte PLANK

LIGHT OUTPUT

  • Low, medium and high light output
  • From 3100 to 9900 lumens
  • Up to 152 lm / W system efficiency
  • Ambient temperature of −20 °C to +35 °C
Commercial and industrial luminaire PLANK - Example application
Example application
Commercial and industrial luminaire PLANK - Example application
Example application
Example application
Example application
Example application
Example application
Example application
Example application

APPLICATIONS

  • Production facility
  • Industrial plant
  • Maintenance depot
  • Fire station
  • Tram and bus depot
  • Water reservoir
  • Gallery
  • Underground car park
  • Warehouse
  • Access area
  • Civil defence construction (FOCP-compliant)
