EQUIP

EQUIP

A product that wins people over.



«EQUIP is a downlight family that sets new standards and ushers in a new generation of downlights. During its development, therefore, we didn’t rely solely on our own expertise. Instead, we also took advantage of the freedom we enjoy at Tulux. The freedom, for example, to redesign lights from scratch, to try them out – and to refine them based on our assessment. We repeated these steps until were certain that EQUIP produces light in exactly the way we envisaged.»

Nino Ferrari, Marketing
[Translate to English:] Fünf Gründe für die Downlight EQUIP

EQUIP – five convincing reasons.

  1. A new generation of downlights
  2. Subtle lighting
  3. Good integration into rooms
  4. Ingenious lighting technology
  5. Subtle differentiations in light quality

Overview

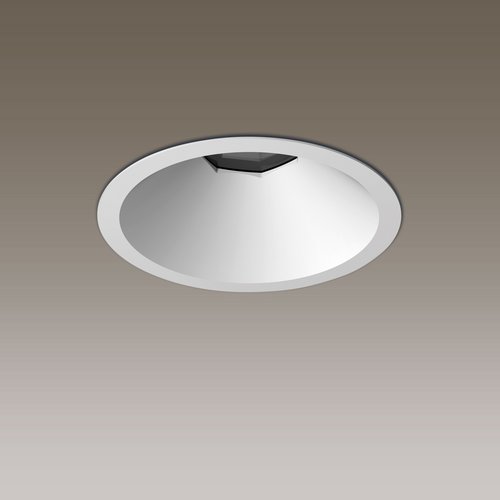

16525M-11KD93

Recessed downlight EQUIP DALI

13.6W LED, 1345 Lumen, 99 Lumen/Watt, 3000 Kelvin. H=90mm, CRI>90, UGR<16, ceiling-side IP40 and room-side IP55. Medium-angled beam. White anti-glare reflector made of die-cast aluminium. High reflecting, anodized and silver coated segment reflector. With highly transparent anti-glare closing glass. With universal fixing brackets. With electronic ballast.

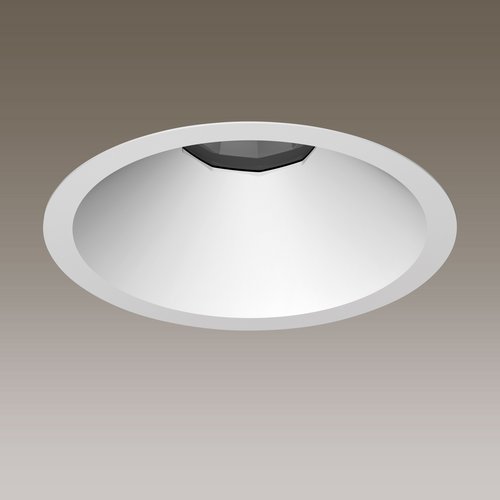

16526M-11KD93

Recessed downlight EQUIP DALI

13.5W LED, 1584 Lumen, 118 Lumen/Watt, 3000 Kelvin. H=120mm, CRI>90, UGR<16, ceiling-side IP40 and room-side IP55. Medium-angled beam. White anti-glare reflector made of die-cast aluminium. High reflecting, anodized and silver coated segment reflector. With highly transparent anti-glare closing glass. With universal fixing brackets. With electronic ballast.

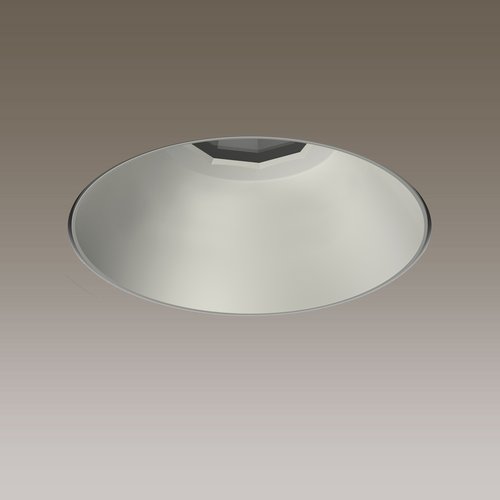

16527BP-11YD93

Recessed downlight EQUIP FLEX DALI

11.2W LED, 1471 Lumen, 132 Lumen/Watt, 3000 Kelvin. H=122mm, CRI>90, UGR<19, ceiling-side IP40 and room-side IP40. Wide-angled beam. With anti-glare reflector made of matt coated synthetic material. High reflecting, anodized and silver coated segment reflector. With highly transparent anti-glare closing glass. For flush installation with plastering. With adjustable fixing brackets. With electronic ballast.

16528B-11YD93

Recessed downlight EQUIP FLEX DALI

11.2W LED, 1471 Lumen, 132 Lumen/Watt, 3000 Kelvin. H=120mm, CRI>90, UGR<19, ceiling-side IP40 and room-side IP40. Wide-angled beam. With anti-glare reflector made of polish coated synthetic material. High reflecting, anodized and silver coated segment reflector. With highly transparent anti-glare closing glass. With adjustable fixing brackets. With electronic ballast.

16529BP-11YD93

Recessed downlight EQUIP FLEX DALI

11.2W LED, 1471 Lumen, 132 Lumen/Watt, 3000 Kelvin. H=122mm, CRI>90, UGR<19, ceiling-side IP40 and room-side IP40. Wide-angled beam. With anti-glare reflector made of polish coated synthetic material with wave structure. High reflecting, anodized and silver coated segment reflector. With highly transparent anti-glare closing glass. For flush installation with plastering. With adjustable fixing brackets. With electronic ballast.

16529B-11YD93

Recessed downlight EQUIP FLEX DALI

11.2W LED, 1471 Lumen, 132 Lumen/Watt, 3000 Kelvin. H=120mm, CRI>90, UGR<19, ceiling-side IP40 and room-side IP40. Wide-angled beam. With anti-glare reflector made of polish coated synthetic material with wave structure. High reflecting, anodized and silver coated segment reflector. With highly transparent anti-glare closing glass. With adjustable fixing brackets. With electronic ballast.

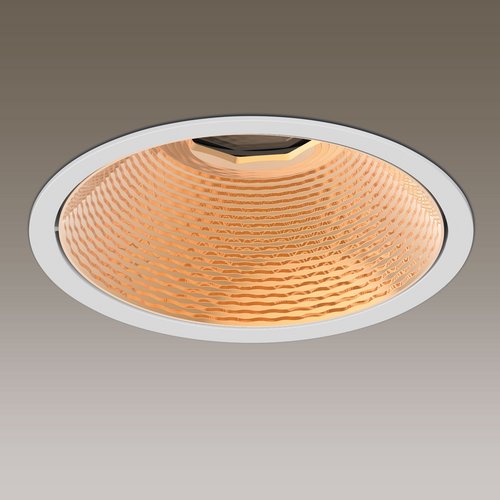

16530BP-11YD93

Recessed downlight EQUIP FLEX DALI

11.2W LED, 1471 Lumen, 132 Lumen/Watt, 3000 Kelvin. H=122mm, CRI>90, UGR<19, ceiling-side IP40 and room-side IP40. Wide-angled beam. With anti-glare reflector made of bronze synthetic material with wave structure. High reflecting, anodized silver coated segment reflector. With highly transparent anti-glare closing glass. For flush installation with plastering. With adjustable fixing brackets. With electronic ballast.

16530B-11YD93

Recessed downlight EQUIP FLEX DALI

11.2W LED, 1471 Lumen, 132 Lumen/Watt, 3000 Kelvin. H=120mm, CRI>90, UGR<19, ceiling-side IP40 and room-side IP40. Wide-angled beam. With anti-glare reflector made of bronze synthetic material with wave structure. High reflecting, anodized silver coated segment reflector. With highly transparent anti-glare closing glass. With adjustable fixing brackets. With electronic ballast.

DESIGN

  • Luminaire is concealed and looks like a recess in the ceiling
  • Surface is available in any colour
  • Standardised, simple appearance across all variants
  • Glass set back in the middle of the luminaire protects the ingenious lighting technology

REFLECTOR DESIGN

  • Reflector designs can be chosen freely and changed at any time
  • Matt silver and corrugated surfaces in bronze or silver combine well with current material trends
  • Corrugated reflector gives a wavy reflection of the surroundings and takes on the colours of the room

CONSTRUCTION

Light guidance by the primary reflector inside the luminaire guarantees protection against dust and dirt

COOLING

Thermodynamically optimised die-cast aluminium housing guarantees a long and stable operational lifetime even in the casting drum

LIGHT QUALITY

  • Optimum glare suppression up to UGR 16
  • 3000 K / 4000 K colour rendering CRI > 90
  • 3000 K in three light qualities
  • Version with optimised light spectrum for white tones or rich colours
  • Optimised glare suppression on the reflector ensures low brightness values, resulting in absolutely glare-free lighting conditions with contrast-rich and bright surfaces

LIGHT OUTPUT

  • In combination with luminous fluxes of 1400 to 4500 lm, the applications are almost infinite
  • Each luminaire can be fitted with a self-sufficient power supply for emergency lighting

LIGHT DISTRIBUTION

Thanks to reflectors developed and manufactured by Tulux, the luminaires achieve accurate light guidance with an efficiency of over 90 %

Example application
Example application
Example application
Example application
Example application
Example application
Example application
Example application

APPLICATIONS

  • Bathrooms
  • Office environments
  • Entrances
  • Reception areas
  • Stairways
  • Canopies
  • Conference rooms
  • Kitchens
  • Sales floors
  • Living quarters
  • Healthcare sector
  • Spa areas
  • Corridors
