AREA – a luminaire designed for life. Check out the product teaser!
«It was very important to us to develop a luminaire that produces a pleasant, glare-controlled light and is also very energy-efficient, can be fitted quickly and doesn’t have an overly technical look. The final version of AREA is the result of a series of material tests and photometric measurements in our in-house lighting laboratory. The excellent glare control, the component of indirect light and volumes that are tailored to classrooms and workspaces create a pleasant atmosphere and produce good light for focused working and learning.»
Hans-Kaspar Schreiber, Development / Product Design
![](/fileadmin/Tulux/uploads/Hans-Kaspar_Tulux_MA_2021-102LOW_web2.jpg)
OVERVIEW
![](/fileadmin/_processed_/7/6/csm_115NK5_e02fd6dc0a.jpg)
115NK5-M1AD94
Surface-mounted luminaire AREA
35.2W LED, 4993 Lumen, 142 Lumen/Watt, 4000 Kelvin. L=1157mm, W=140mm, H=59mm, CRI>90, UGR<25, IP40. IP50 in the lamp housing. Energy efficiency class of the light source: C. For ceiling or wall mounting. Opal cover made of acrylic glass. Regular light output. With electronic ballast. With DALI control.
![](/fileadmin/_processed_/2/c/csm_145NK5_9aa280b681.jpg)
145NK5-M1AD94
Surface-mounted luminaire AREA
44.1W LED, 6325 Lumen, 144 Lumen/Watt, 4000 Kelvin. L=1457mm, W=140mm, H=59mm, CRI>90, UGR<25, IP40. IP50 in the lamp housing. Energy efficiency class of the light source: C. For ceiling or wall mounting. Opal cover made of acrylic glass. Regular light output. With electronic ballast. With DALI control.
![](/fileadmin/_processed_/4/8/csm_42NKQ5_2f3da7d36a.jpg)

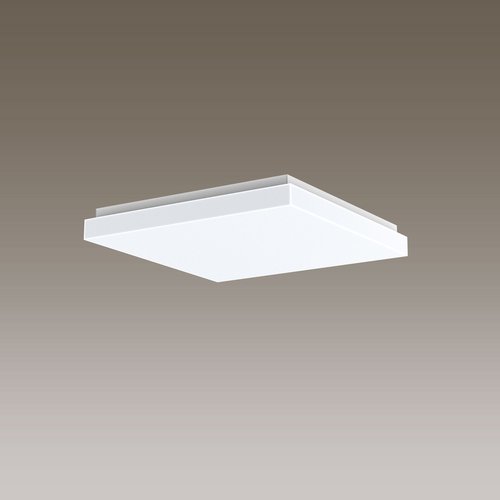

42NKQ5-T1ADN94
Surface-mounted luminaire AREA
20.8W LED, 2930 Lumen, 141 Lumen/Watt, 4000 Kelvin. L=420mm, W=420mm, H=59mm, CRI>90, UGR<22, IP40. IP50 in the lamp housing. Energy efficiency class of the light source: C. For ceiling or wall mounting. Opal cover made of acrylic glass. Low light output. With electronic ballast and integrated emergency lighting. With DALI control.
![](/fileadmin/_processed_/3/4/csm_65NKQ5_e2212e2256.jpg)

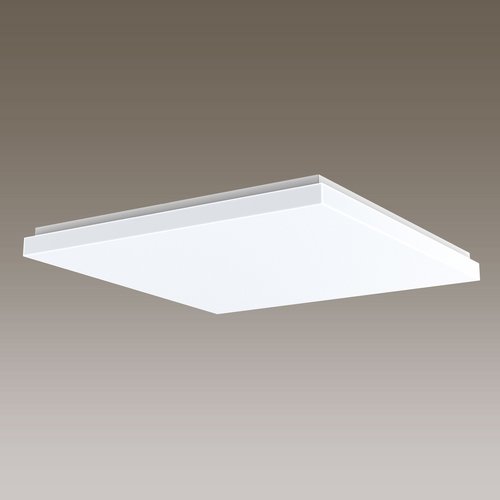

65NKQ5-T1ADN94
Surface-mounted luminaire AREA
41W LED, 5879 Lumen, 144 Lumen/Watt, 4000 Kelvin. L=650mm, W=650mm, H=59mm, CRI>90, UGR<22, IP40. IP50 in the lamp housing. Energy efficiency class of the light source: C. For ceiling or wall mounting. Opal cover made of acrylic glass. Low light output. With electronic ballast and integrated emergency lighting. With DALI control.
![](/fileadmin/_processed_/6/5/csm_115NKP5_480c1f7aea.jpg)

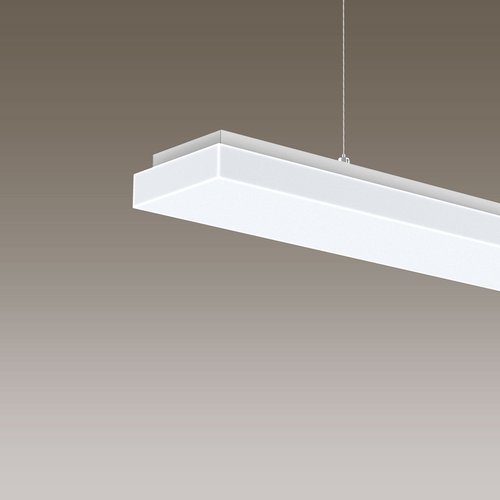

115NKP5-M1ADN94
Pendant luminaire AREA
35.2W LED, 4993 Lumen, 142 Lumen/Watt, 4000 Kelvin. L=1157mm, W=140mm, H=59mm, CRI>90, UGR<25, IP40. IP50 in the lamp housing. Energy efficiency class of the light source: C. For ceiling mounting. Opal cover made of acrylic glass. Regular light output. With electronic ballast and integrated emergency lighting. With DALI control. Steel cable suspension 1 m, adjustable in height. 1.15 m of white connection cable included.
![](/fileadmin/_processed_/a/d/csm_145NKP5_0bffa8852e.jpg)

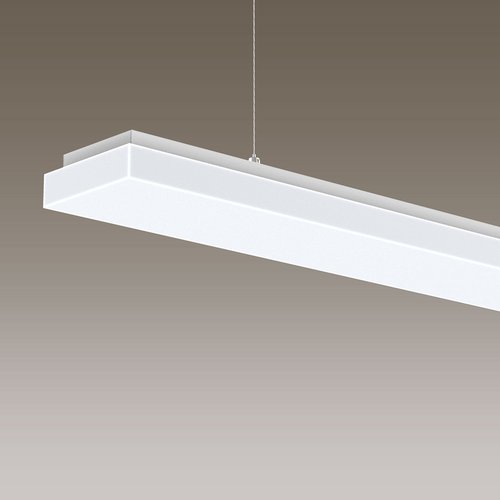

145NKP5-M1ADN94
Pendant luminaire AREA
44.1W LED, 6325 Lumen, 144 Lumen/Watt, 4000 Kelvin. L=1457mm, W=140mm, H=59mm, CRI>90, UGR<25, IP40. IP50 in the lamp housing. Energy efficiency class of the light source: C. For ceiling mounting. Opal cover made of acrylic glass. Regular light output. With electronic ballast and integrated emergency lighting. With DALI control. Steel cable suspension 1 m, adjustable in height. 1.15 m of white connection cable included.
![](/fileadmin/_processed_/9/0/csm_42NKQP5_6595890e76.jpg)

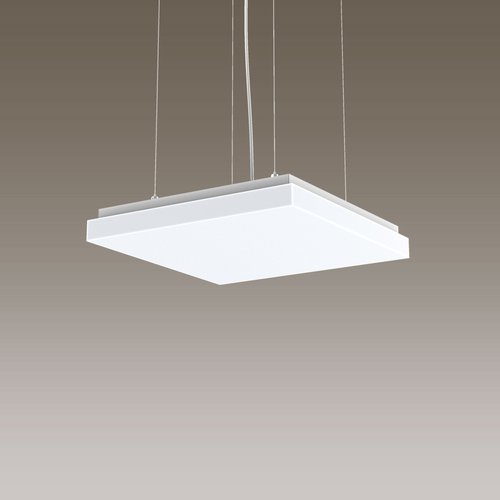

42NKQP5-T1ADN94
Pendant luminaire AREA
20.8W LED, 2930 Lumen, 141 Lumen/Watt, 4000 Kelvin. L=420mm, W=420mm, H=59mm, CRI>90, UGR<22, IP40. IP50 in the lamp housing. Energy efficiency class of the light source: C. For ceiling mounting. Opal cover made of acrylic glass. Low light output. With electronic ballast and integrated emergency lighting. With DALI control. Steel cable suspension 1 m, adjustable in height. 1.15 m of white connection cable included.
![](/fileadmin/_processed_/0/1/csm_65NKQP5_ab7b816fc4.jpg)

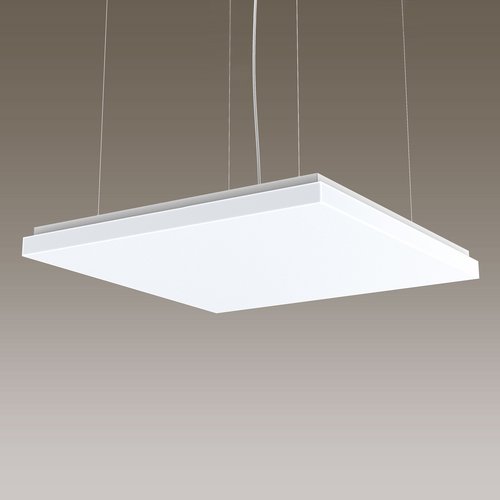

65NKQP5-T1ADN94
Pendant luminaire AREA
41W LED, 5879 Lumen, 144 Lumen/Watt, 4000 Kelvin. L=650mm, W=650mm, H=59mm, CRI>90, UGR<22, IP40. IP50 in the lamp housing. Energy efficiency class of the light source: C. For ceiling mounting. Opal cover made of acrylic glass. Low light output. With electronic ballast and integrated emergency lighting. With DALI control. Steel cable suspension 1 m, adjustable in height. 1.15 m of white connection cable included.
E-magazine
Brochures are so last season! Available any time, anywhere and always up to date – our new digital magazine presents the latest highlight in our range!
Informative illustrations, concrete facts and figures and incisive articles full of light bulb moments – our product magazine for architects, planners and fitters is packed with details of the AREA luminaire series and its applications, along with interesting information about light in general.
![](/fileadmin/_processed_/c/9/csm_AREA_offen_mit_Klickkonsole_6f5dffe778.jpg)
TECHNICAL SPECIFICATIONS
- Colour temperature: 3000 K and 4000 K
- Dimensions: square design 420/650 mm,
linear design 1157/1457 x 140 mm - Colour rendering: CRI > 90
- Unified Glare Rating: up to UGR < 19
- Luminous flux (effective): up to 10772 lm/m
- System efficiency: up to 145 lm/W
- Shock resistance: IK07 (opal cover) / IK05 (prismatic cover)
- ON/OFF, DALI-2 and emergency operation

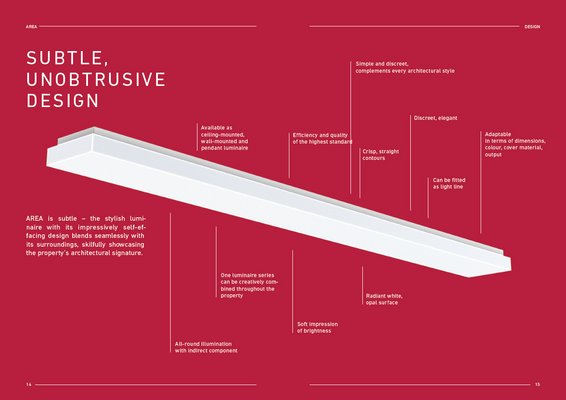

Design
- Simple and discreet, complements every architectural style
- Discreet, elegant
- Crisp, straight contours
- Soft impression of brightness
- Radiant white, opal surface
- All-round illumination with indirect component
- Available as ceiling-mounted, wall-mounted and pendant luminaire
- One luminaire series can be creatively combined throughout the property
- Can be fitted as light line
- Efficiency and quality of the highest standard
- Adaptable in terms of dimensions, colour, cover material, output

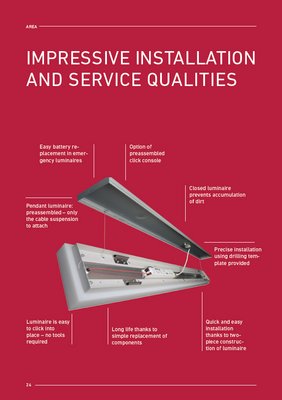

INSTALLATION
- Option of preassembled click console
- Closed luminaire prevents accumulation of dirt
- Precise installation using drilling template provided
- Quick and easy installation thanks to two-piece construction of luminaire
- Long life thanks to simple replacement of components
- Luminaire is easy to click into place – no tools required
- Pendant luminaire: preassembled – only the cable suspension to attach
- Easy battery replacement in emergency luminaires
![](/fileadmin/_processed_/0/b/csm_Aufenthalt_1623134657-1493_AREA_3_6e319c8da0.jpg)
![](/fileadmin/_processed_/d/0/csm_Schulzimmer_1623001574-1493_AREA_4_be9df1cd5d.jpg)
![](/fileadmin/_processed_/2/a/csm_B%C3%BCro_1622974565-1493_AREA_1_ee6c816d1a.jpg)
![](/fileadmin/_processed_/e/3/csm_Korridor_1623134938-1493_AREA_5_20492ddca9.jpg)
![](/fileadmin/_processed_/5/2/csm_Empfang_1623135295-1493_AREA_6_4894e2e747.jpg)
![](/fileadmin/_processed_/9/e/csm_B%C3%BCro_klein_1622966765-1493_AREA_2_d4d8a962cb.jpg)
APPLICATIONS
- Office
- Conference room
- Seminar room
- Lounge
- Access area
- Reception area
- Treatment room (health sector)
- Visitor/staff restaurant
- Front desk
- Classroom
- Kindergarten
- Community space
